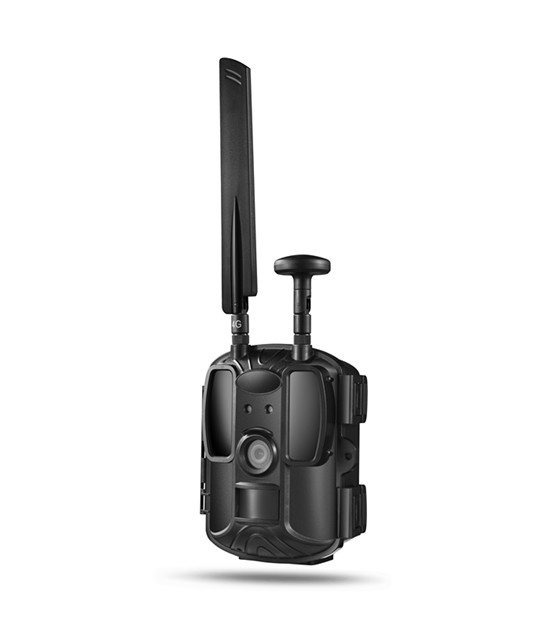

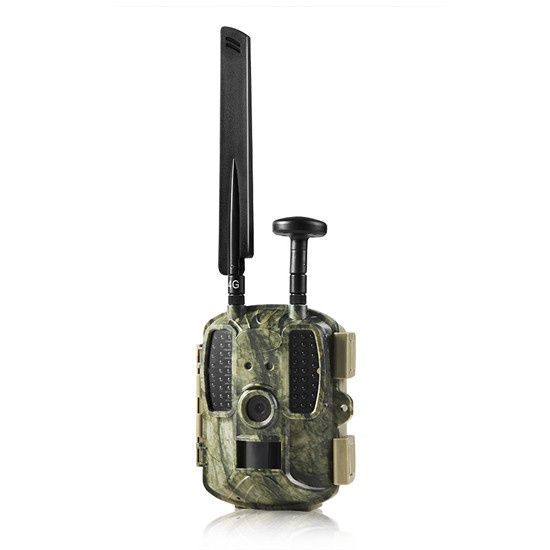

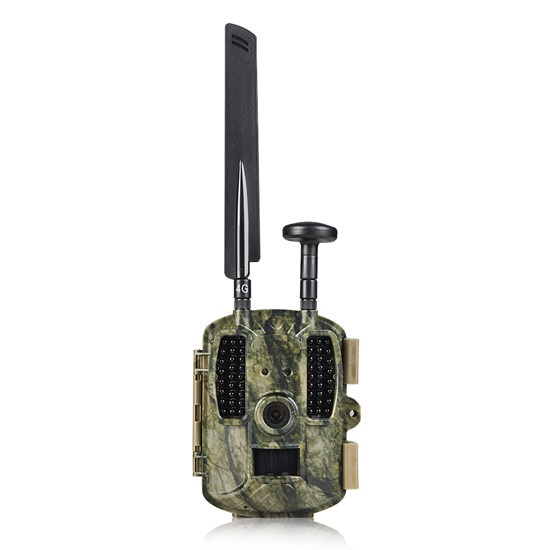

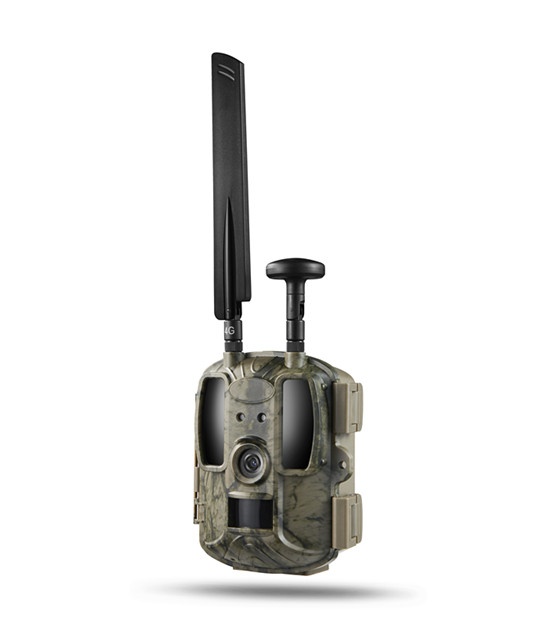

Product name : BL480L-P 4G 3G 2G Cellular GPS Trail Cameras
Product No. : BL480L-P

Details:
  Balever BL480L-P 12MP LTE/MMS/FTP/SMTP/GPS Hunting Trail Camera



Supporting network



Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage



GPS function



Supporting, camera will read it when camera is Only on Test mode.



MMS Function



1-3 mobile IDonly sending VGA and QVGA image



SMTP function



1-3 Email IDNO SSL/SSL/TSL support, original image and video can be sentif camera is on camera+video mode, all can be sent out



FTP function



Original picture or video can be sent out via FTP function



Reading local time



Supporting, after choosing local time zone



Menu Language

English, French, Spanish, German, Portuguese, Italian, Chinese, Russian, Japanese, Hungarian, Polish, Swedish Slovak



APP



Available on Android and Apple mobile



Image Sensor



5 Mega Pixels Color CMOS



Effective Pixels



2592*1944



Day/Night Mode



Auto



IR range



20m



IR Led



52pcs  950nm



SD Memory Capacity



SD Card (8MB – 32 GB)



Operating buttons



7 buttons



Lens (Wide lens model)



F=1.8;  FOV= 112.0°; NO IR-Cut-Remove (at night)



Lens (Regular lens model)



F=1.8;  FOV=73.6°; NO IR-Cut-Remove (at night)



LCD Screen



2.0” TFT, RGB, 262k



PIR Sensitivity



3 sensitive levels: High / Normal / Low



PIR distance



20m



PIR Angle



9 or 120°



Picture size



5MP/8MP/12MP =2592x1944/3264x2448/4032x3024



Picture Format



JPG



Video resolution



1080P (1920x1080): 30FPS, 720P (1280x720):30FPS, 640x480



Video Format



MOV   H.264



Video Length



5-30sec. programmable



Shooting Numbers



1-3



Trigger Time



0.6s



Trigger Interval



3s-60min



Time lapse



supporting



Timer Setting



2 Timers



Device Serial No.



Yes



Built-in Speaker



Yes



Recording Voice



ON/OFF



SD card cycle



Yes



Operation Power



Internal power:4-15V; External power: 4-15V



Battery Type



12 AA



Stand-by Current



0.25mA



Stand-by Time



4-8months (4×AA~12×AA)



Auto Power Off



auto switch to mode “OFF” in 360s without any operations



Power Consumption



IR LEDs Off



Photo: 200mA; Video: 200mA



IR LEDs On



Photo: 0.8A



Video: 0.8A



Interface



Micro SIM Card slot/HDMI out/USB/SD Card/DC Port



Mounting



Strap; Tripod



Storage temperature



-30 °C to 60°C



Operation Humidity



5%-90%



Waterproof spec



IP66



Dimensions



13(length)*9.5(width)*16(higth)cm



Gross Weight



800g



Certification



CE FCC RoHS IP66
